How accurate is Trackit?

The product page specifies 0.025 mm + 0.04 × L (m) volumetric accuracy. But what does that mean in practice? To find out, a ball bar was used — a tool widely used in metrology analysis.

The ball bar was freshly calibrated by a CMM (Coordinate Measuring Machine) with a reference value of 999.5713 mm — precise to four decimal places.

TEST SETUP

The plan was to scan the ball bar with Trackit in three coordinates — X, Y, and Z — and compare the measured distance between the centers of the two balls against the calibrated reference value.

The target point distance was set to minimum for the best detail and accuracy.

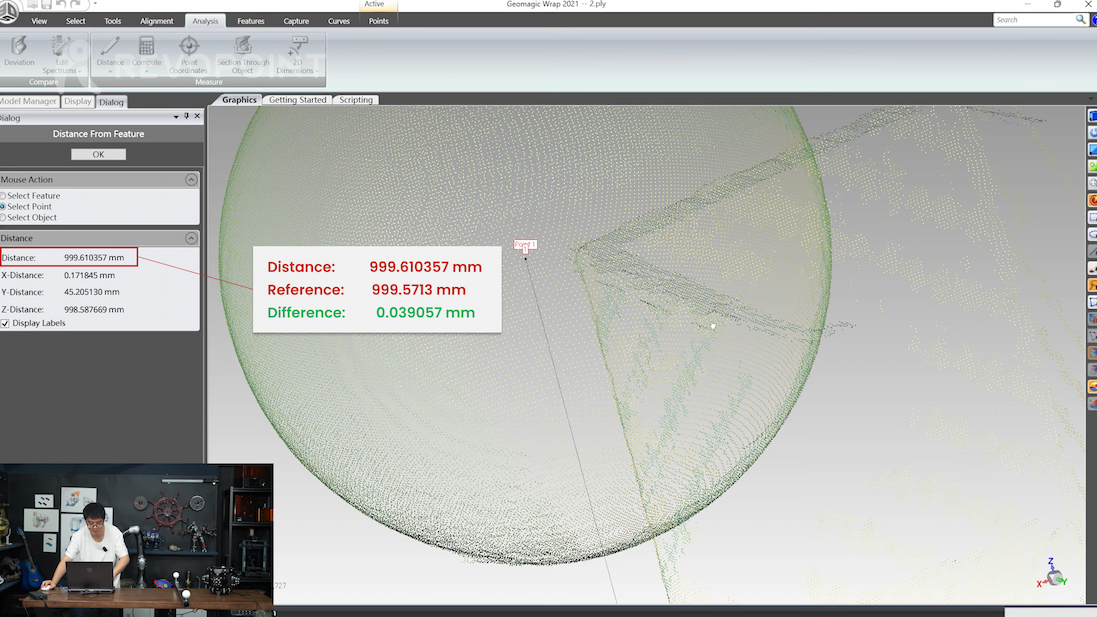

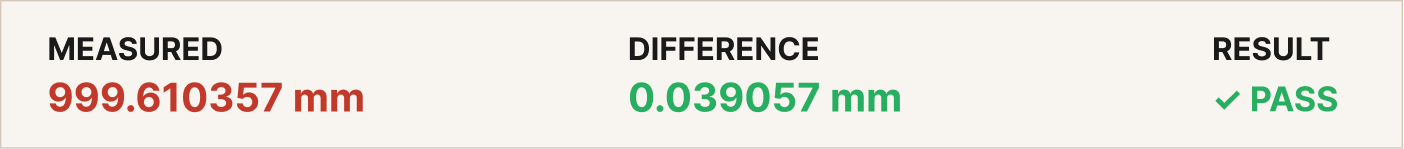

X‑Axis Scan Result

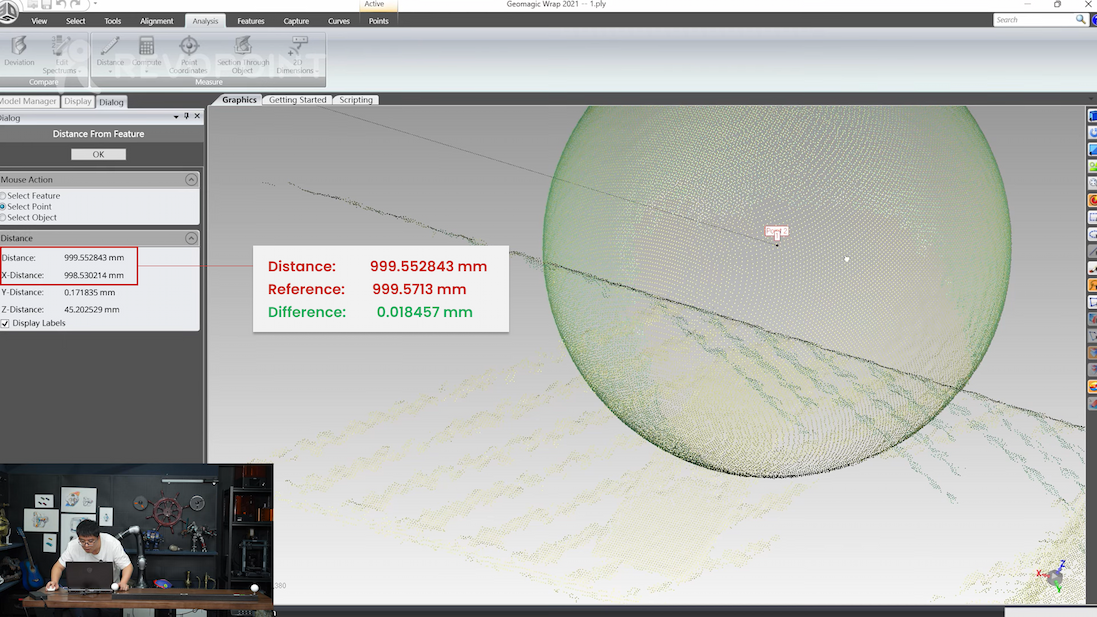

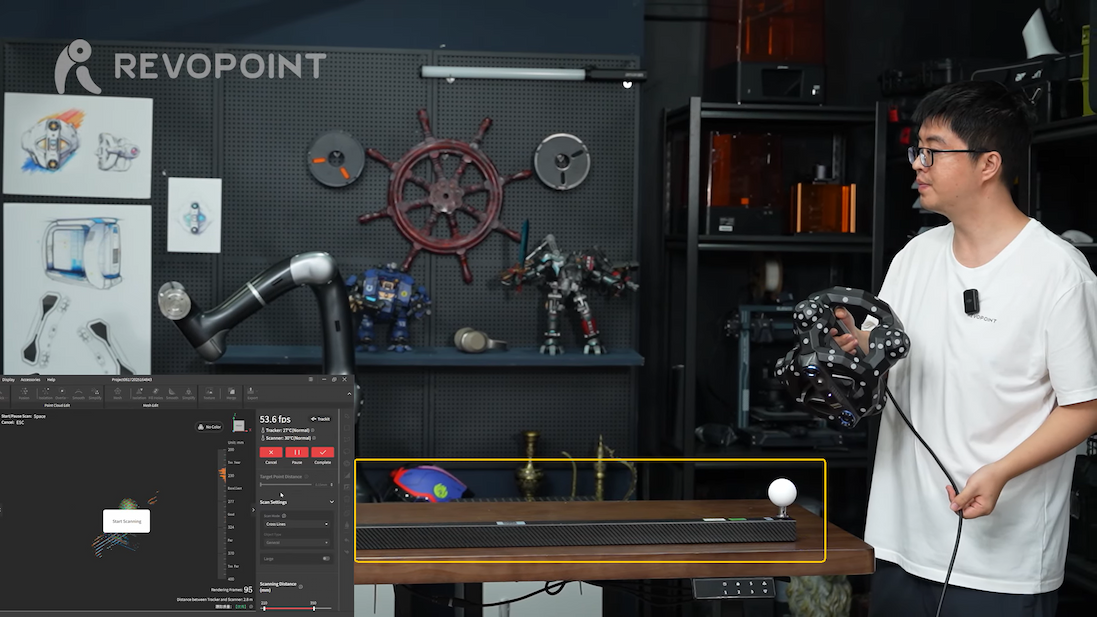

Scanned the ball bar along the X axis. After fusing the point cloud, the distance was calculated in Geomagic Wrap.

This meets the specified accuracy requirement.

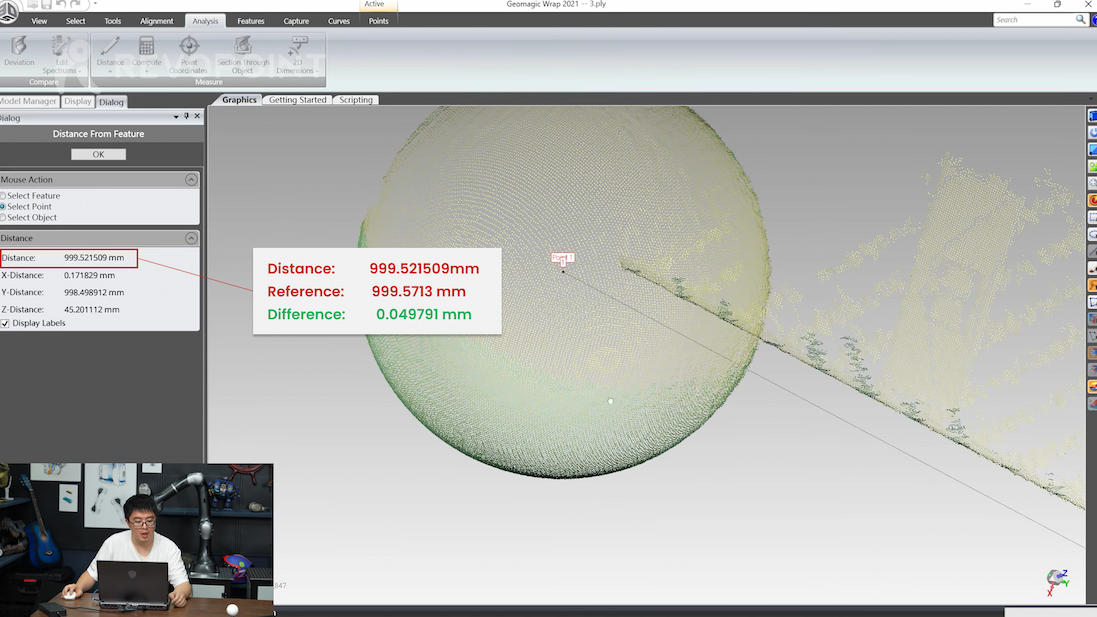

Y‑Axis Scan Result

Scanned along the Y axis using the same settings.

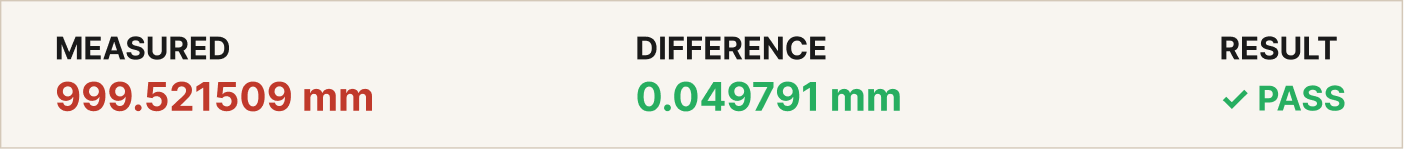

This also meets the specification.

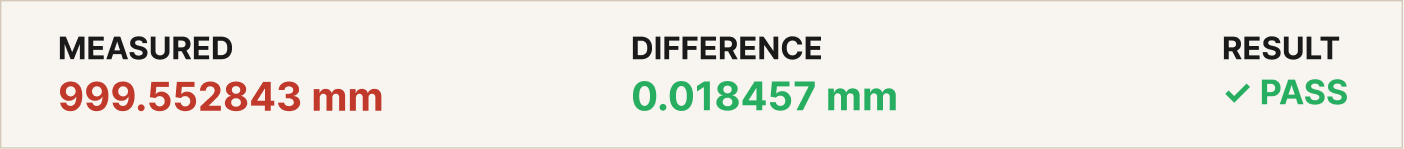

Z‑Axis Scan Result

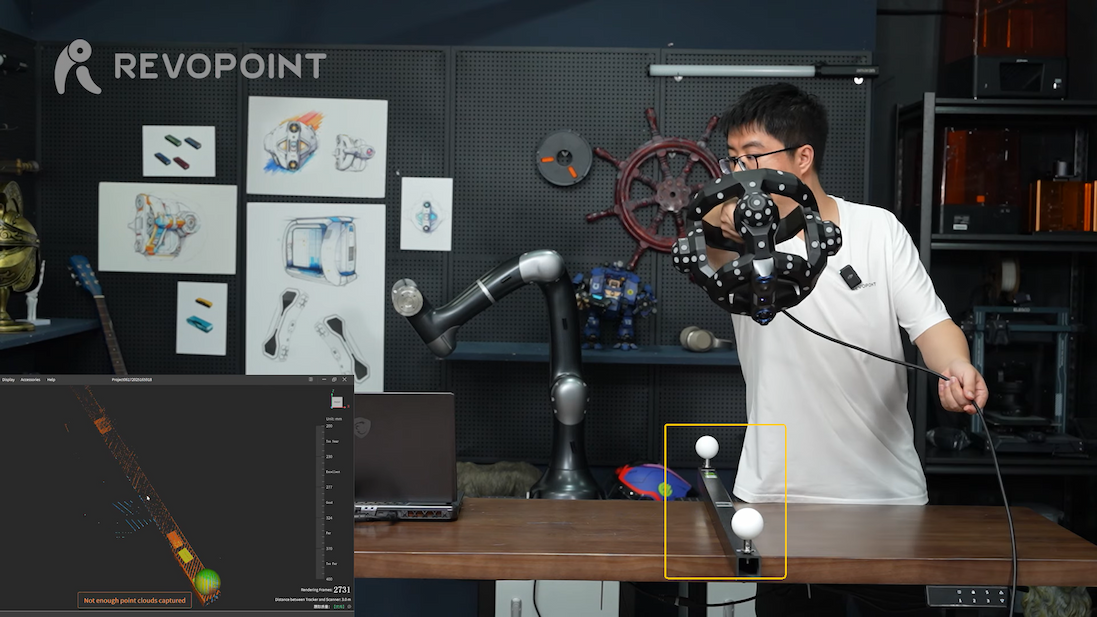

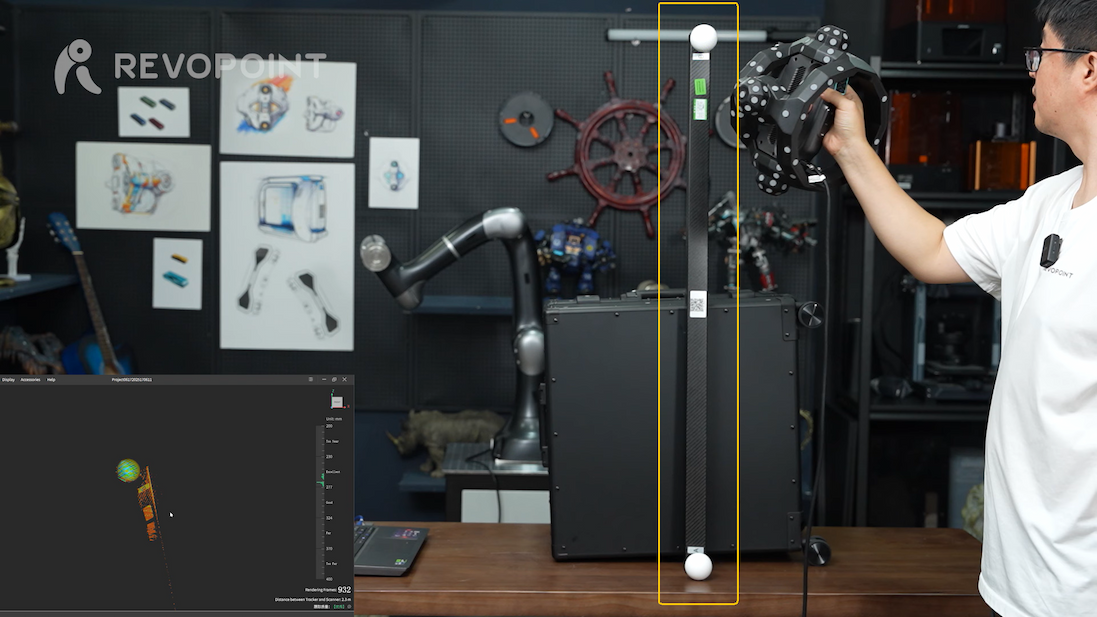

Scanned along the Z axis.

Within the required tolerance.

Conclusion

All three axis tests meet Trackit's published accuracy specification. The results confirm that Trackit delivers reliable, metrology‑grade performance for real‑world measurement tasks.

▶ Watch on YouTube

Read our complete guide for detailed troubleshooting tips and advanced techniques to elevate your 3D scanning workflow.

Put Your Trackit to Work

Its accuracy has been verified. Here's what it can do for you:

The Accuracy Verification Ball Plate serves the same purpose as the ball rod used in testing—it is an ideal tool for accuracy verification. Given that Trackit has a wider scanning range, we recommend using a verification ball rod with a longer center-to-center distance for accuracy verification; however, our accuracy verification ball plate remains an ideal tool for verifying the accuracy of other scanners, such as those in the Metro, INSPIRE, and POP series.

Ensure fast, reliable, on‑site, real‑time accuracy verification with the metrology‑grade ball plate. Its carbon fiber surface and alloy spheres resist ambient temperature changes, ensuring stable measurement. Simply scan it, and Revo Metro will compare against your ball plate's unique CMM‑generated metrology file to calculate volumetric deviation and confirm your 3D scanners' performance.
